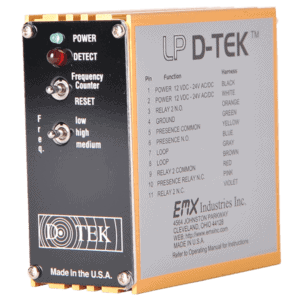

The LP D-TEK was designed for applications where low power consumption is desired. The LP D-TEK low-power vehicle detector’s low 9 mA current draw makes it ideal for solar applications and gate or door operators that require many accessories drawing from the same power supply.
This unit also offers surge protection and two relays. Contact us today to learn more about the LP D-TEK low-power vehicle detector.
| Power Supply | 12 – 24 Volts AC/DC |
| Current Consumption | < 9 mA |
| Operating Temp | -40°F to 180°F |
| Surge Protection | Zener Diode /MOV |
| Output Relays (2) | 1Amp 30 VDC |
| Loop Input | Transformer isolation, lightning and transient protection (1) |
| Loop Inductance Range | 20 – 2000 uH Q-factor of 5 or higher |
| Tuning | Automatic on reset or power up |
| Tracking | Automatic for environmental changes |
| Size | Height 3.25” (83mm) Width 2.56” (40mm) Length 3.65” (90mm) |
| Housing | Extruded Anodized Aluminum |
| Connector | 86CP11 11 pin male |
LD-11
Black, wide profile, 11 pin socket base for DIN rail mount
Loop Sizes
Loop Installation
Preformed Loop Spec Sheet
Preformed Loop Manual
Test Loop Instructions
