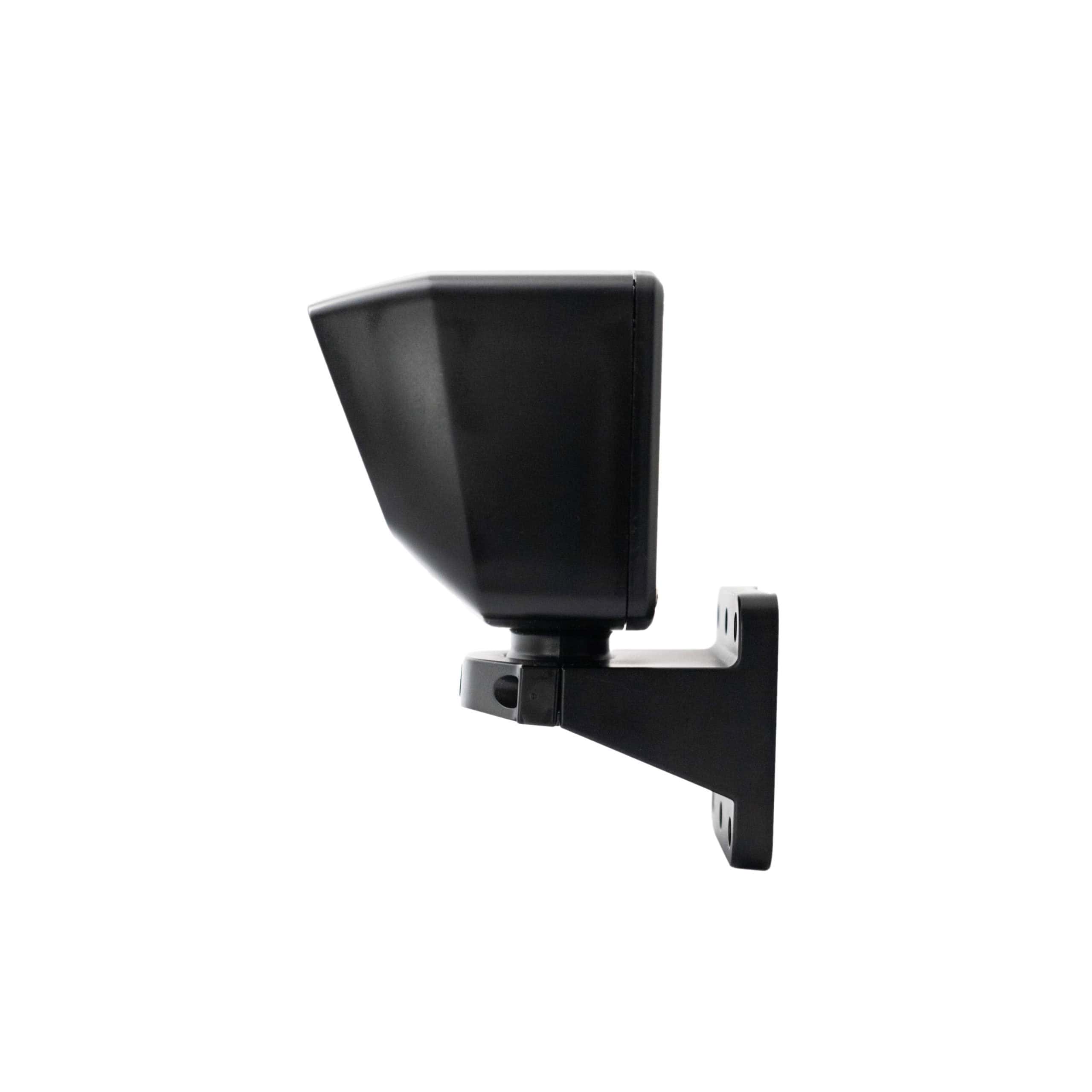

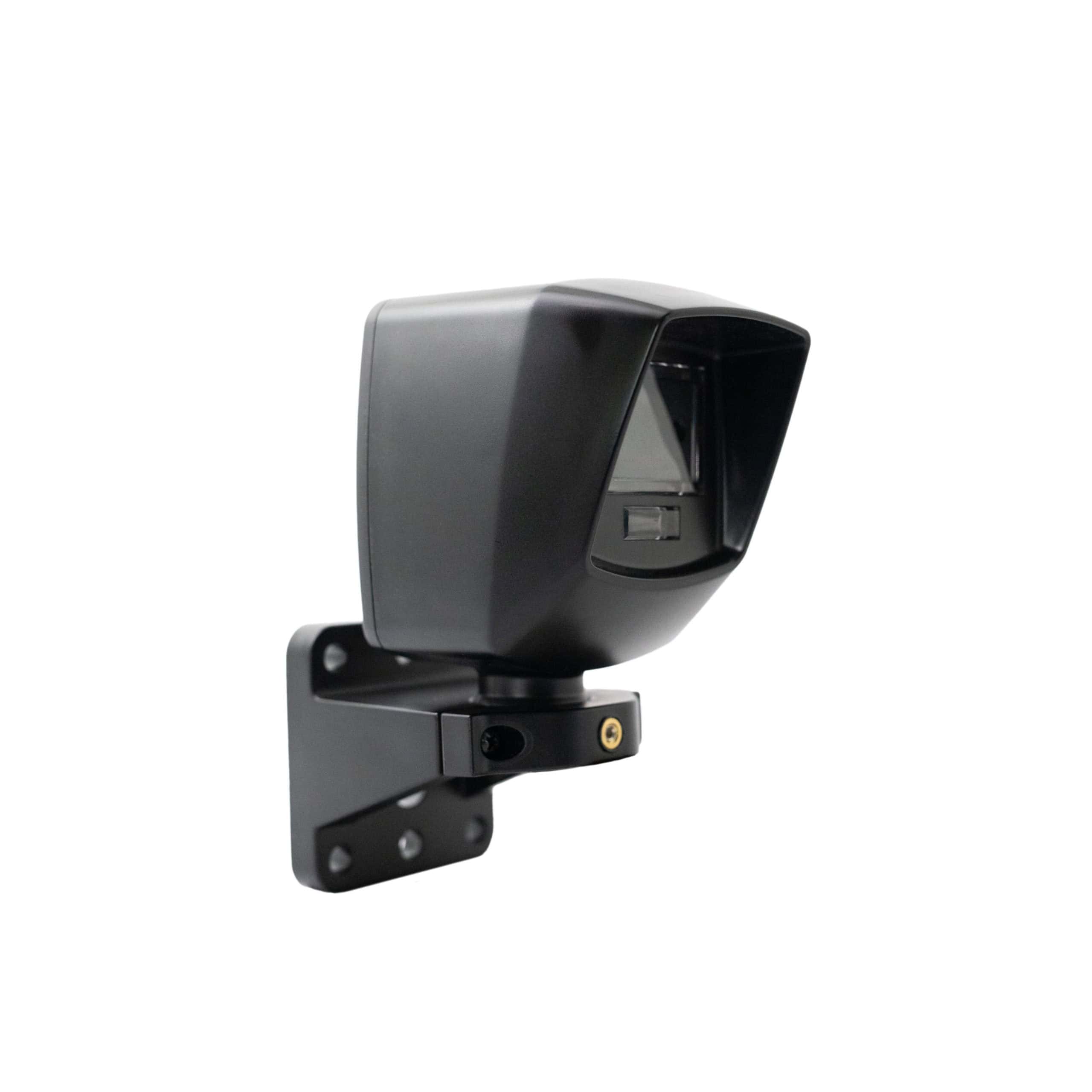

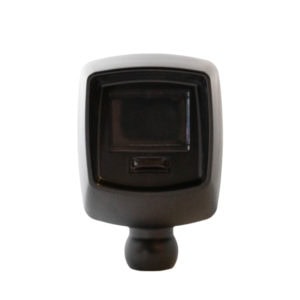

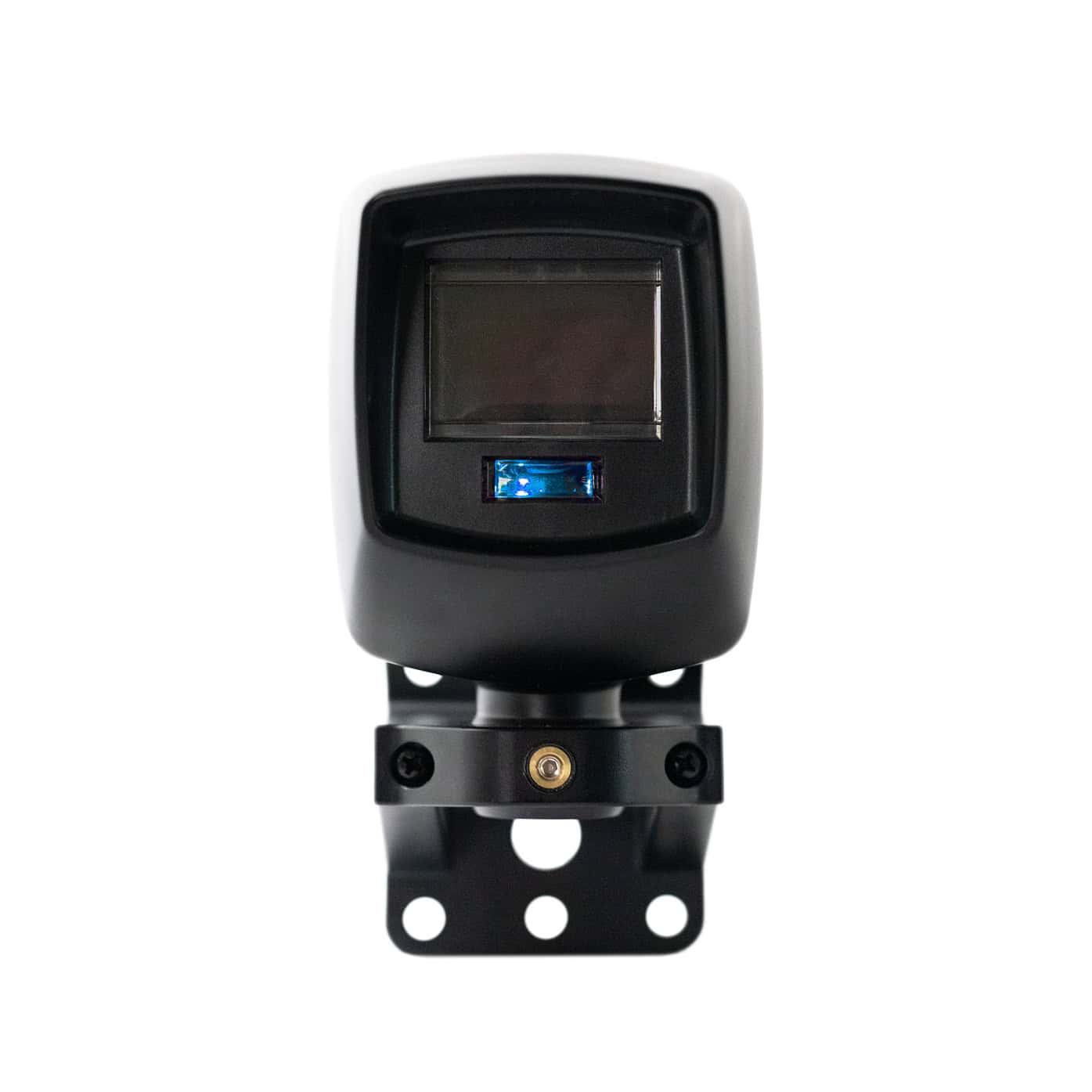

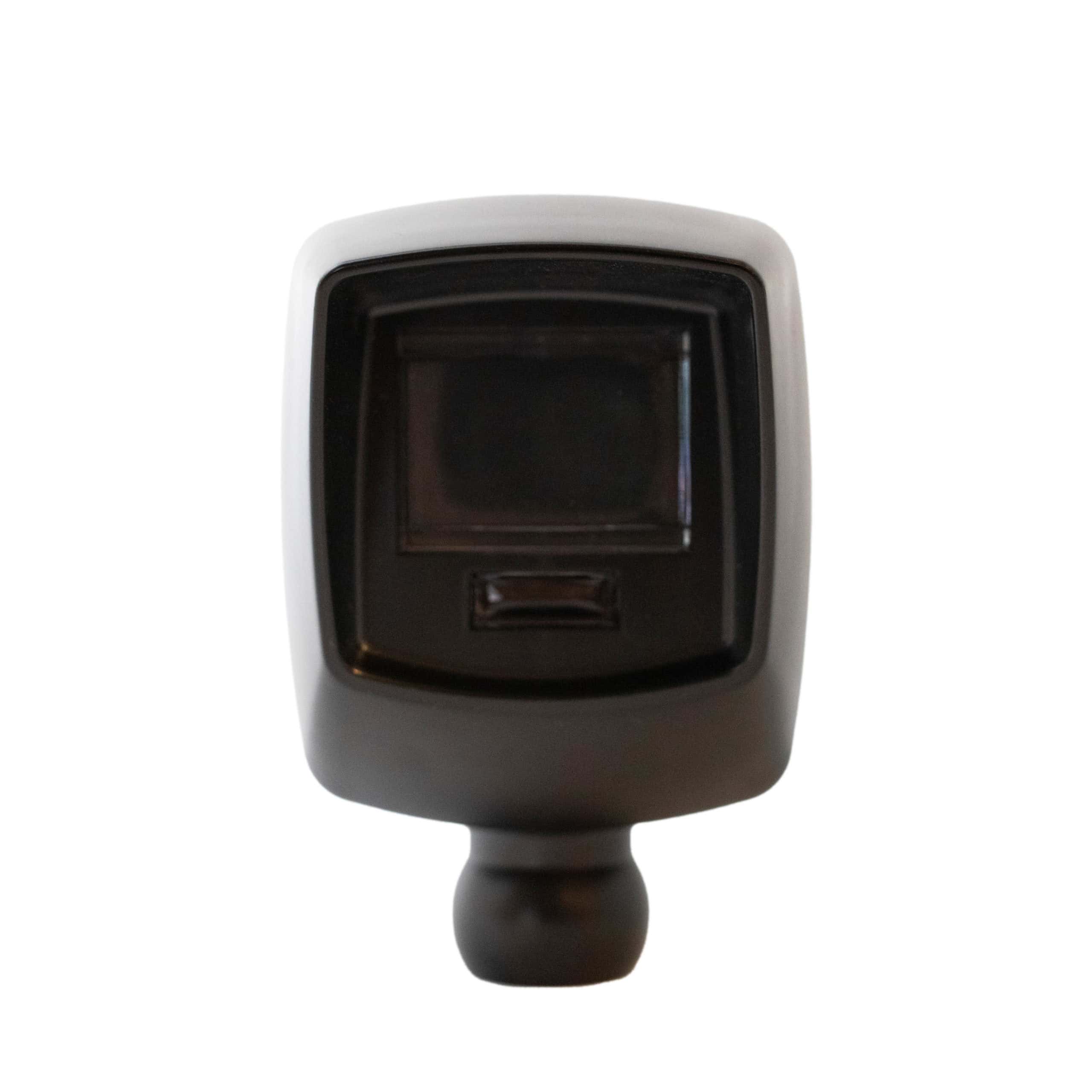

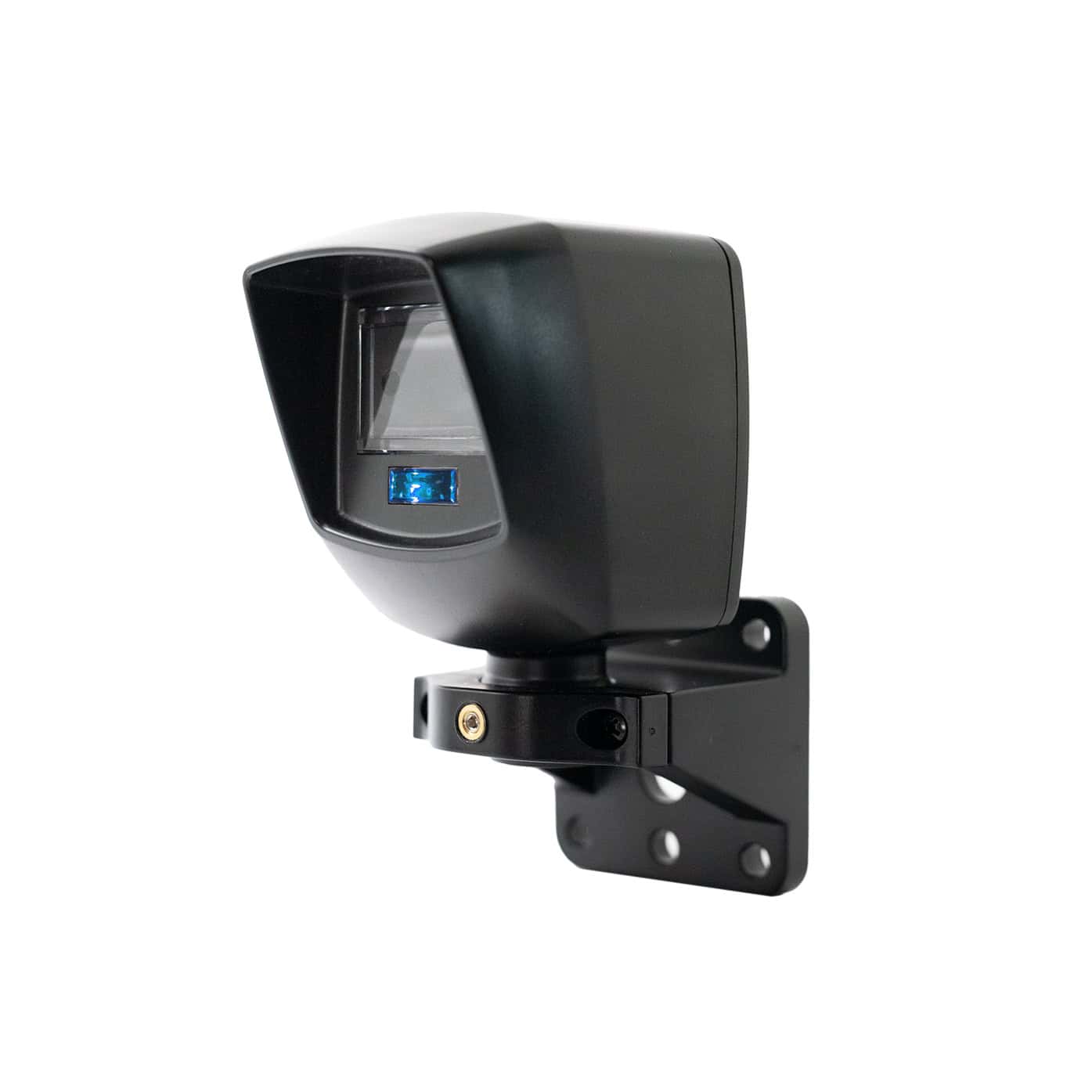

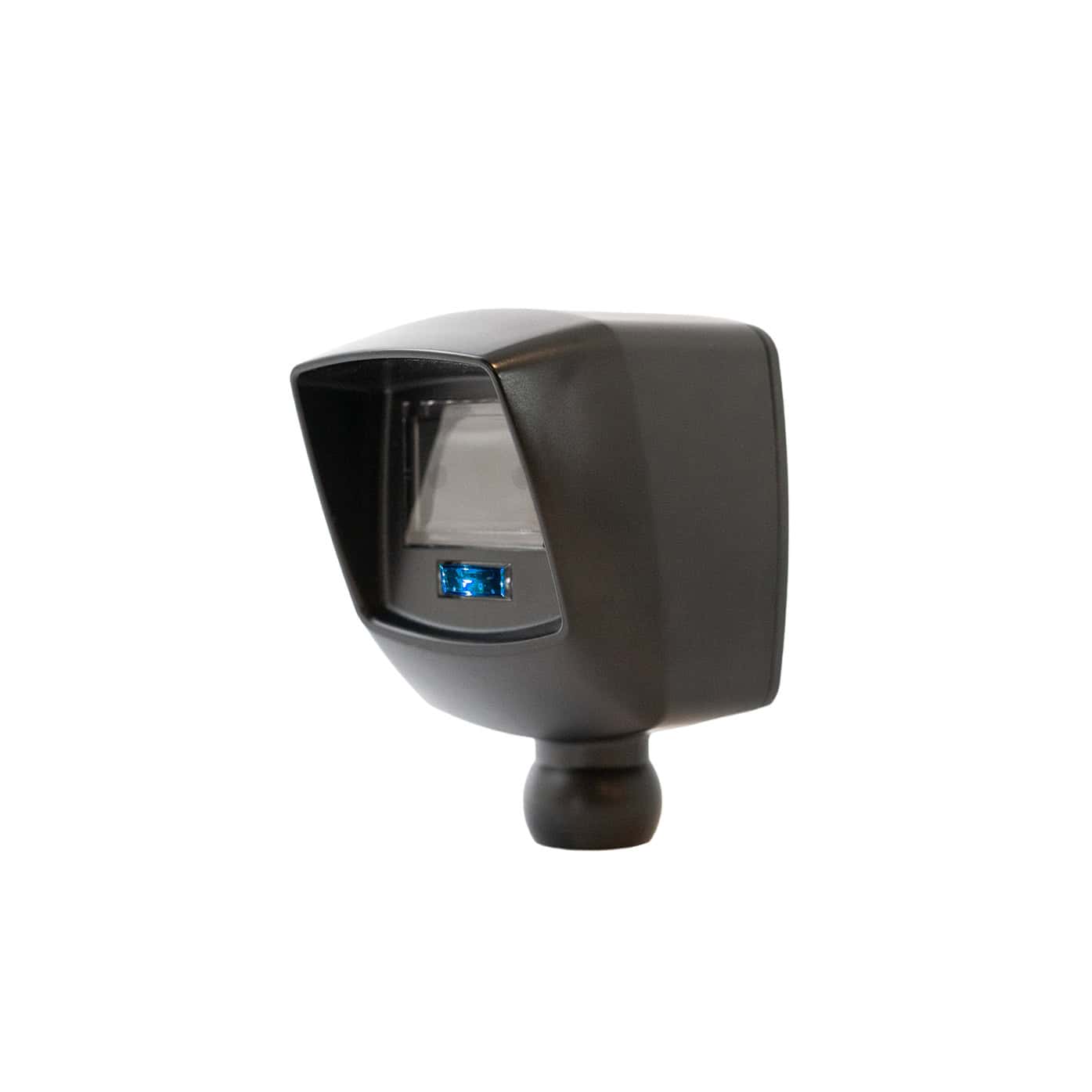

MRD-1P Radar Presence Sensor

EMX MRD-1P OVERVIEW

The MRD-1P Radar Presence Sensor from EMX Industries is a highly accurate, durable solution for detecting vehicles or pedestrians near barrier arms.

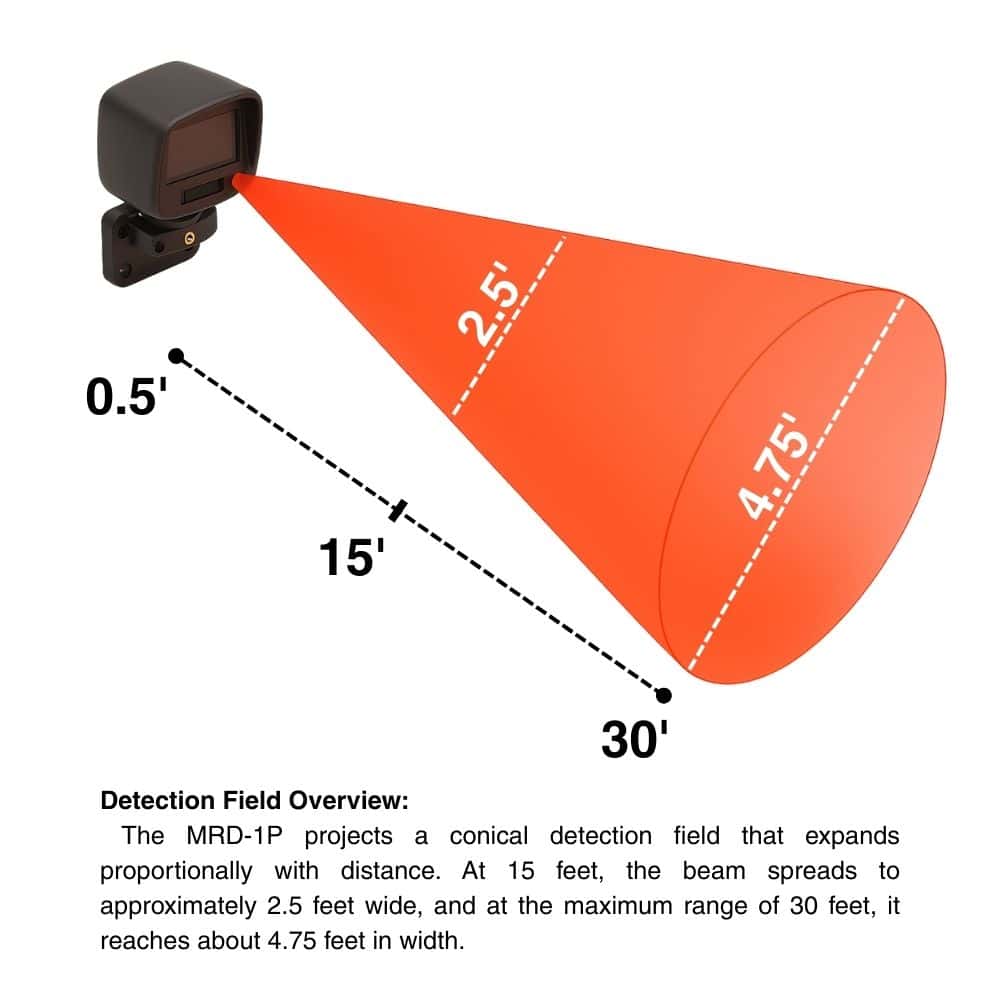

This advanced radar sensor detects obstructions over a configurable range of 1 ft to 30 ft (0.3 – 10 m), with precision measurement down to 0.04″ (1 mm). Its microwave beam performs reliably even in harsh environments, unaffected by rain, snow, ice, or fog.

The MRD-1P features flexible relay outputs for pulse-on-entry and pulse-on-exit signaling, along with a fully featured menu for deeper customization using its intuitive pushbuttons and 3-digit display. Installation is made simple with visual beam shape guidance and a detachable screw terminal block for ease of wiring.

With robust design, fast response time, and superior detection capability, the MRD-1P offers the reliability and performance you need for effective vehicle and pedestrian detection at access points. Enhance your site security and operational efficiency with the MRD-1P.

Features of the MRD-1P Radar Sensor

Accurate detection of vehicles and pedestrians
Configurable detection range: 1 ft to 30 ft (0.3 – 10 m)
Precision measurement: down to 0.04″ (1 mm)
Works in all weather conditions (rain, snow, fog, ice)
Form C relay outputs for versatile signaling
Solid-state relay outputs for pulse-on-entry / pulse-on-exit

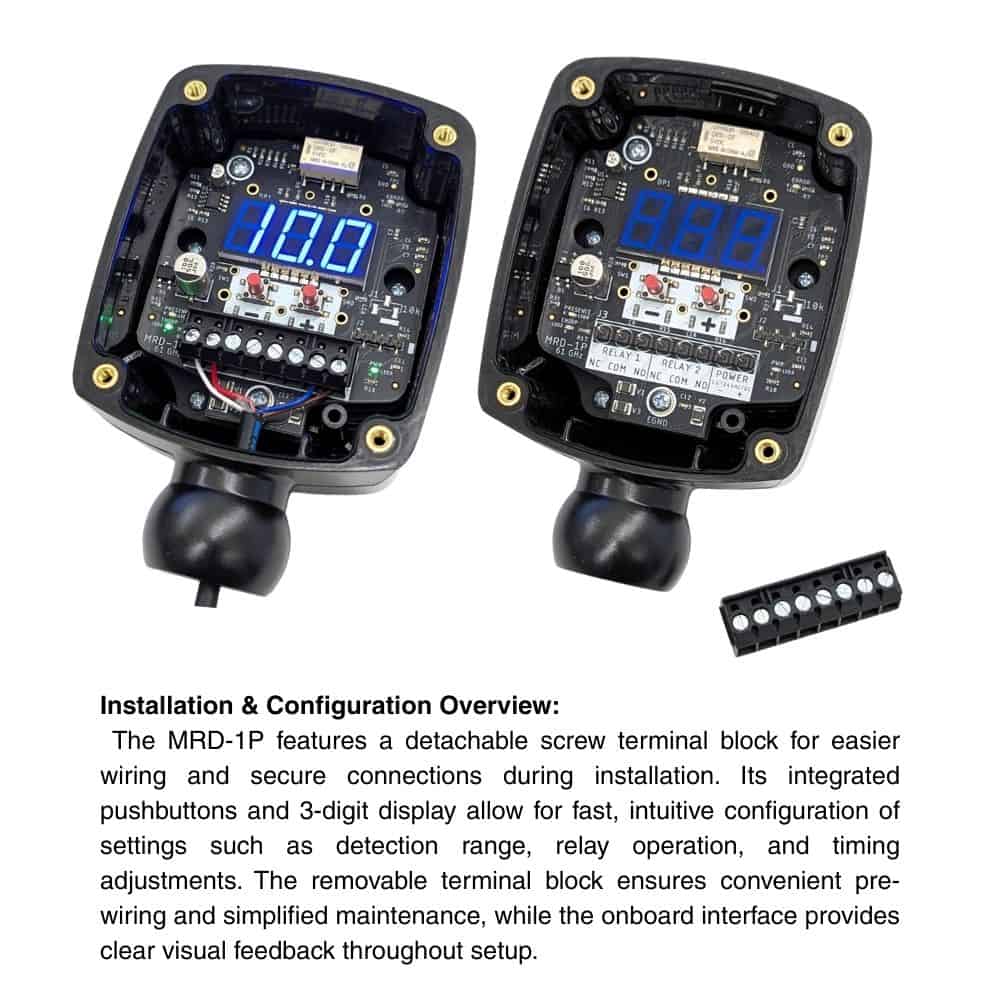

Full-feature menu with pushbuttons and 3-digit display
Detachable screw terminal block for easy wiring

Relay outputs include:

Presence Relay: NC terminal opens when an obstruction is present, NO terminal closes when an obstruction is present
Pulse Relay: Configurable for Pulse on Entry, Pulse on Exit, or none
Configurable hold and pulse times

MRD-1P Radar Sensor Specs

Operating Range	1 ft (0.3 m) to 30 ft (10 m)
Power	6-40 VDC, 12-24 VAC
Current	40mA max (24VDC input)
Surge Protection	Thermal fuse, MOV
Relay 1 Output Operation	Close on Presence, Open on Presence
Relay 2 Output Operation	Pulse on Entry, Pulse on Exit
Response Time	30ms
Operating Temperature	-40° to 140°F (-40° to 60°C)
Dimensions (L x W x H)	5.1” (130 mm) x 3.15” (80 mm) x 5.5” (140 mm)
Ball Joint Mount Conduit Thread	½ Inch NPT

Compatible Mount

325-POST-2

A lightweight steel mounting post pre-configured for EMX photoeyes and the MRD-1P radar sensor, with pre-indented drill points for a fast, accurate install.

View the 325-POST-2 →
