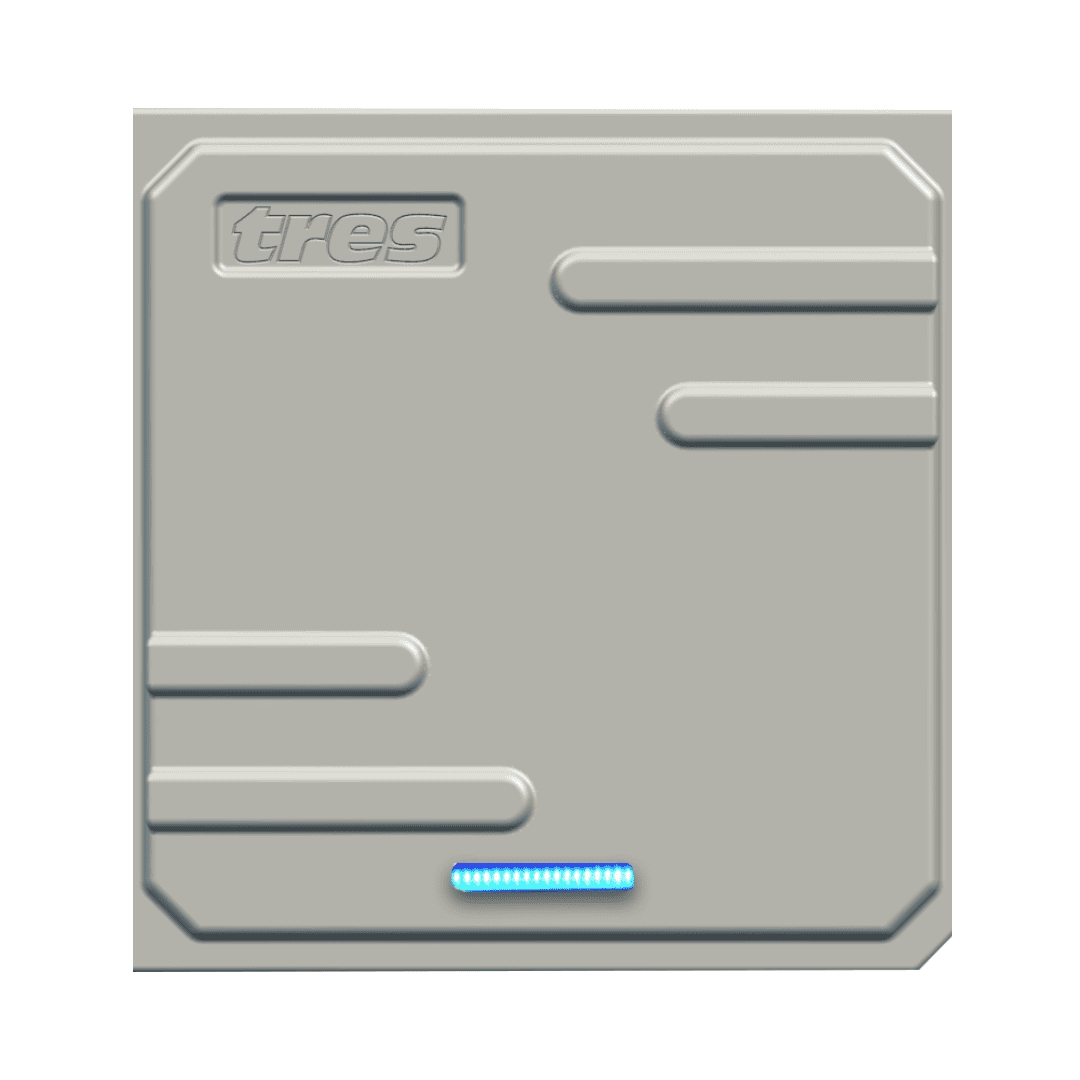

The Patriot L series carries all the features of the Patriot M and supports a larger variety of communication protocols including Wiegand, RS232 (Optional RS485, OSDP, TCP/IP and WIFI)
The Patriot L RFID Reader offers a superior integration versatility with support for various communication protocols and multiple Wiegand formats, coupled with an impressive read range and rugged, weather-resistant design. Its range of software adjustable features, LED indicator, and built-in relay, along with its robust performance across varying power inputs, make it a flexible and reliable solution for diverse access control scenarios.
The Patriot L series carries all the features of the Patriot M and supports a larger variety of communication protocols including Wiegand, RS232 (Optional RS485, OSDP, TCP/IP and WIFI)
The compatibility with multiple Wiegand bit formats along with enhanced communication support makes this unit versatile for integration with a wide variety of security systems.
| Model Name | Patriot – L |
|---|---|
| TX / RX Frequency | 902-928 MHz |
| Max RF Power | 30dBm (1 Watt) |
| Average Read Range (site and tag dependent) | 18-25 feet |

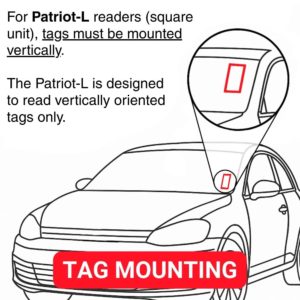

| Antenna | Linear 10dBi (Gain) |
| LED Indicator | Yes |
| Sounder Indicator | Yes |
| Supply Voltage | 9-48VDC |
| Included Power Supply | 110/240AC to 12VDC |
| Included Mounting Bracket | Yes |
| Max Current | 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) |
| Adjustable read range | Yes |
| Outputs to Controller | Wiegand, RS-232, Relay Contact, RS-485 / OSDP (Optional) |
| Communication Options for Reader Configuration | RJ45 Ethernet Connector (Optional), WiFi (Optional) |
| Reader Capab | Standard Credential Tags: Window Tag, Hang Tag |
| Bluetooth Credential Capable | Optional |
| Extra Feature | Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller |
| Arming Input Capable | Yes |
| FCC Approval | Part 15 |
| Operational Temperature | -20°C to +70°C |
| Size | 9.45″ x 9.45″ x 3.82″ |
| IP Rated | YES-IP65 |
| Patriot – E | Patriot – L | Patriot – M | Patriot – SR | |
|---|---|---|---|---|
| TX / RX Frequency | 902-928 MHz | 902-928 MHz | 902-928 MHz | 902-928 MHz |
| Max RF Power | 30dBm (1 Watt) | 30dBm (1 Watt) | 30dBm (1 Watt) | 25dBm |
| Average Read Range (site and tag dependent) | 18-25 feet | 18-25 feet | 18-25 feet | Up to 7 feet |
| Antenna | Circular Polarized 7.5 dBi (Gain) | Linear 10dBi (Gain) | Circular Polarized 7.5 dBi (Gain) | Circular Polarized 4dBi (Gain) |
| LED Indicator | Yes | Yes | Yes | Yes |
| Sounder Indicator | Yes | Yes | Yes | Yes |
| Supply Voltage | 9-48VDC | 9-48VDC | 9-48VDC | 9-30 VDC |
| Included Power Supply | 110/240AC to 12VDC | 110/240AC to 12VDC | ||
| Included Mounting Bracket | Yes | Yes | Yes | |
| Max Current | 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) | 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) | 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) | 500mA max @ 5vDC, 200mA 5vDC in standby (trigger mode) |
| Adjustable read range | Yes | Yes | Yes | Yes |
| Outputs to Controller | ||||
| Wiegand | Yes | Yes | Yes | Yes |
| RS-232 | Yes | Yes | Yes | |
| Relay Contact | Yes | Yes | ||
| RS-485 / OSDP | Yes | Optional | ||
| Communication Options for Reader Configuration | ||||
| RJ45 Ethernet Connector | Optional | Optional | ||
| WiFi | Optional | Optional | ||
| Reader Capab | ||||
| Standard Credential Tags | Window Tag, Hang Tag | Window Tag, Hang Tag | Window Tag, Hang Tag | Window Tag, Hang Tag, |
| Bluetooth Credential Capable | Optional | Optional | Optional | |
| Extra Feature | Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller | Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller | ||
| Arming Input Capable | Yes | Yes | Yes | Yes |
| FCC Approval | Part 15 | Part 15 | Part 15 | Part 15 |
| Operational Temperature | -20°C to +70°C | -20°C to +70°C | -20°C to +70°C | -20°C to +70°C |
| Size | 8.78″ x 7.87″ x 2.36″ | 9.45″ x 9.45″ x 3.82″ | 9.45″ x 9.45″ x 3.82″ | 4″ x 4″ x 1.2″ |
| IP Rated | YES-IP65 | YES-IP65 | YES-IP65 | YES-IP65 |
