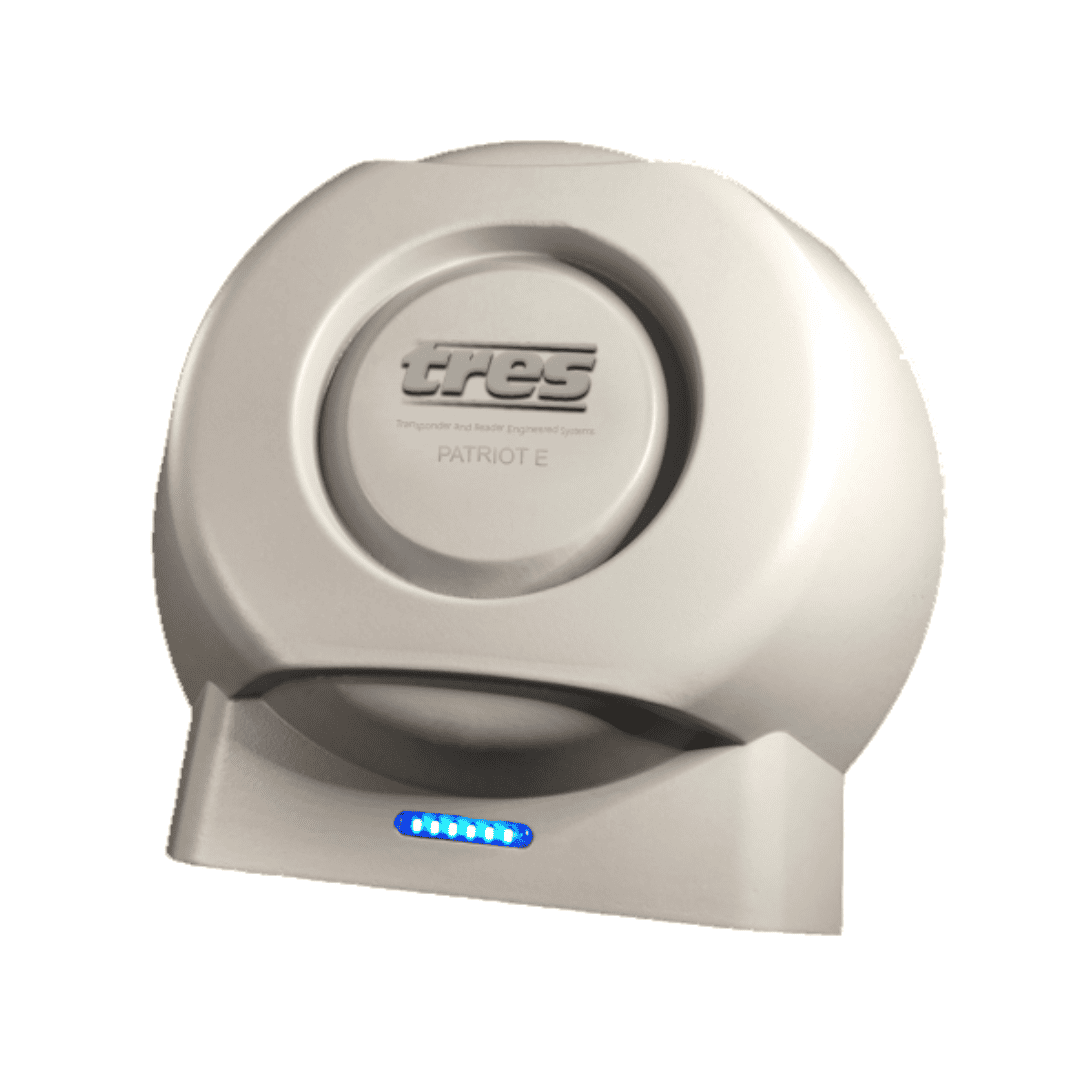

PATRIOT E

The Patriot E RFID Reader excels in versatility and durability, featuring compatibility with a range of communication protocols, an impressive read range, and robust, weather-resistant housing. Its efficient power consumption, customizable settings, and optional network features, along with compliance with regulatory standards, make it an adaptable and dependable choice for diverse RFID applications.

The Patriot E is our high-performance RFID reader. It boasts every feature from both the M and the L, and supports an even wider range of communication protocols, including Wiegand, RS232, RS485, and OSDP. With optional TCP/IP and WIFI support.

Integrated circular polarized antenna — which allows for tag read regardless of tag orientation.

Exceptional Read Range and Frequency Hopping Technology

In a class of its own, the Patriot E guarantees an exceptional read range of 18′ – 25′, reaching far beyond what’s ordinarily possible. Its advanced frequency-hopping technology ensures a seamless operation within the 902 – 928mHz spectrum, guaranteeing accuracy and optimal performance.

Multiple Wiegand Bit Formats Support

With the capacity to support multiple Wiegand bit formats, the Patriot E ensures unmatched compatibility and flexibility. This feature allows you to easily integrate the system into your existing infrastructure, providing an upgrade in both security and functionality.

User Convenience Features

  • LED Indicator and Audible Sounder: Offers immediate, clear feedback on the system’s operation and status, ensuring smooth and efficient functioning.
  • Relay Contact: Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller
  • Bluetooth Credential Capable: Optional





Features of Our TRES Patriot E

  • Advanced RFID reader with extended read range of 18′ – 25′
  • Supports Multiple Wiegand Bit Formats
  • Interactive LED Indicator
  • Variable 12 to 48VDC Input Voltage for maximum power flexibility
  • Frequency Hopping within 902-928mHZ spectrum
  • Rugged, weather-resistant IP65 rated housing that can withstand -4° to 158° F
  • Software adjustable features including dBm levels, LED timing, buzzer control, buffer timing, and Wiegand timing
  • Controllable relay with an on/off option
  • Capability to isolate facility codes
The Patriot E boasts superior communication support for:

  • Wiegand Interface
  • RS232 Communication
  • RS485 Protocol
  • OSDP Standard
  • Relay Interface
  • Optional TCP/IP and Wi-Fi for advanced, remote access control

With its ability to support multiple Wiegand bit formats and communication protocols, the Patriot E stands out as the ideal choice for a versatile, adaptable, and robust security system integration.

Model Name Patriot – E
TX / RX Frequency 902-928 MHz
Max RF Power 30dBm (1 Watt)
Average Read Range (site and tag dependent) 18-25 feet
Antenna Circular Polarized 7.5 dBi (Gain)
LED Indicator Yes
Sounder Indicator Yes
Supply Voltage 9-48VDC
Included Power Supply 110/240AC to 12VDC
Included Mounting Bracket Yes
Max Current 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode)
Adjustable read range Yes
Outputs to Controller Wiegand, RS-232, Relay Contact, RS-485 / OSDP
Communication Options for Reader Configuration RJ45 Ethernet Connector, WiFi
Reader Capab Standard Credential Tags: Window Tag, Hang Tag
Bluetooth Credential Capable Optional
Extra Feature Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller
Arming Input Capable Yes
FCC Approval Part 15
Operational Temperature -20°C to +70°C
Size 8.78″ x 7.87″ x 2.36″
IP Rated YES-IP65

Spec Sheet

Software

Comparison Table

Patriot – E Patriot – L Patriot – M Patriot – SR
TX / RX Frequency 902-928 MHz 902-928 MHz 902-928 MHz 902-928 MHz
Max RF Power 30dBm (1 Watt) 30dBm (1 Watt) 30dBm (1 Watt) 25dBm
Average Read Range (site and tag dependent) 18-25 feet 18-25 feet 18-25 feet Up to 7 feet
Antenna Circular Polarized 7.5 dBi (Gain) Linear 10dBi (Gain) Circular Polarized 7.5 dBi (Gain) Circular Polarized 4dBi (Gain)
LED Indicator Yes Yes Yes Yes
Sounder Indicator Yes Yes Yes Yes
Supply Voltage 9-48VDC 9-48VDC 9-48VDC 9-30 VDC
Included Power Supply 110/240AC to 12VDC 110/240AC to 12VDC
Included Mounting Bracket Yes Yes Yes
Max Current 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) 1.82 A max @ 5vDC, 470mA 5vDC in standby (trigger mode) 500mA max @ 5vDC, 200mA 5vDC in standby (trigger mode)
Adjustable read range Yes Yes Yes Yes
Outputs to Controller
Wiegand Yes Yes Yes Yes
RS-232 Yes Yes Yes
Relay Contact Yes Yes
RS-485 / OSDP Yes Optional
Communication Options for Reader Configuration
RJ45 Ethernet Connector Optional Optional
WiFi Optional Optional
Reader Capab
Standard Credential Tags Window Tag, Hang Tag Window Tag, Hang Tag Window Tag, Hang Tag Window Tag, Hang Tag,
Bluetooth Credential Capable Optional Optional Optional
Extra Feature Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller Ability to Store up to 500 Authorized Tag Numbers (5 site codes and 100 tags per site) in reader for access control without a door controller
Arming Input Capable Yes Yes Yes Yes
FCC Approval Part 15 Part 15 Part 15 Part 15
Operational Temperature -20°C to +70°C -20°C to +70°C -20°C to +70°C -20°C to +70°C
Size 8.78″ x 7.87″ x 2.36″ 9.45″ x 9.45″ x 3.82″ 9.45″ x 9.45″ x 3.82″ 4″ x 4″ x 1.2″
IP Rated YES-IP65 YES-IP65 YES-IP65 YES-IP65
