IRB-EXP

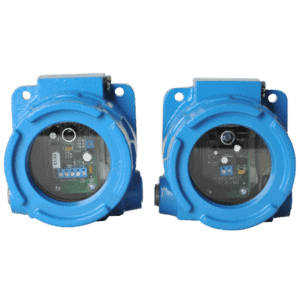

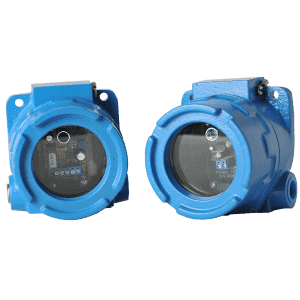

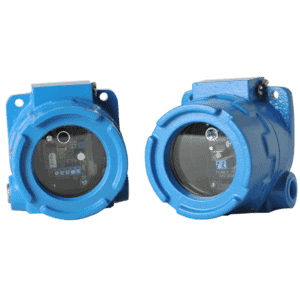

IRB-EXP EXPLOSION PROOF PHOTO BEAM OVERVIEW

Designed for explosive environments, the rugged IRB-EXP explosion proof photo beam is used as a safety, reversing, or opening device in conjunction with automatic operators. The IRB-EXP explosion proof photo beam sensor features a 24° sensing angle for easy installation and alignment and 115-ft. operating range.

The lens-less design of the IRB-EXP makes it less sensitive to fog, dust, snow and sunlight, making it a more accurate explosion-proof photoeye.

Features of Our IRB-EXP Explosion-Proof Photoeyes

Designed to operate in areas with explosive environments
NEMA 4 and 7 housing
NEC Class I, Groups B, C & D, Class II, Groups E, F & G CSA certified, CENELEC certified, EExd IIC
Copper free aluminum with epoxy finish
Potentiometer range adjustment to allow for more precise tuning to site
Thru beam design is not affected by shiny surfaces
Modulated infrared to reduce the effect of sunlight, fog, rain, dust and dirt
No focusing lens

Power	12- 24volts AC or DC
Current	TX = < 21mA, RX = 23mA standby 17mA detect
Range	3 – 115 feet
Operating Temp	-40° F to +170° F
Relay Contact Rating	1A @ 24VDC or 120VAC
Housing Material	NEMA 4 & 7 Cast Aluminum
Dimensions	W – 4.69” x H – 4.5” x D – 3.44”
Detection Angle	18°
Gain Adjustment	Potentiometer
Certifications	CLASS I Groups B, C & D, CLASS II Groups E, F & G, CSA, CENELEC, EExd IIC
