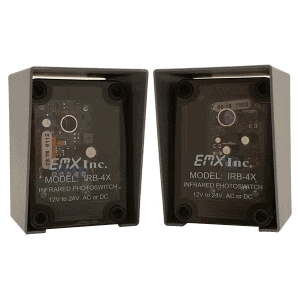

IRB-4X
IRB-4XIRB-4X

IRB-4X

Infrared Photoeye Kit

  • Kit includes transmitter, receiver, protective hoods and sunshield
  • Thru beam configuration
  • 115 ft. operating range
  • NEMA 4X enclosure
Request Info

EMX IRB-4X OVERVIEW

The EMX IRB-4X is used as a safety, reversing, or opening device in conjunction with automatic operators. The lens-less design of the IRB-4X photoeye makes it less sensitive to fog, dust, snow, and sunlight.

For gate or door operators that require a monitored safety device, see our UL325 photoeyes. The IRB-4X is not UL compliant.

Features of Our EMX IRB-4X Photoeyes

  • Works without lenses so it is easy to align
  • Electronic sunlight filter
  • Automatic compensation for temperature changes
  • Capable of penetrating 70% obstruction due to fog, steam and even spray
  • Immune to vibration
  • Does not require additional signal amplifiers or relay boxes
  • Weather-proof NEMA 4X enclosure
Power 12 – 24volts AC or DC
Current TX = 37mA RX = 23mA standby 17mA detect
Range 3 – 115 feet
Response Time 10mS max
Operating Temp -40°F to +170°F
Relay Contact Rating 1A @ 24VDC or 120VAC
Housing Material NEMA 4X Polycarbonate
Dimensions 3.7” x 2.56” x 2.24”
Gain Adjustment Potentiometer

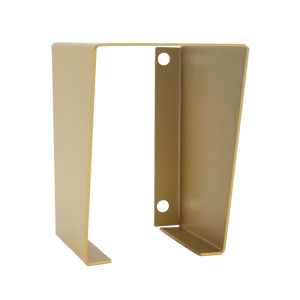

IRB-HD-SET
Gold anodized aluminum protective hood
set of 2
(choose between gold or gray)

IRB-SH-SET
Gray powder coated steel protective hood
set of 2
(choose between gold or gray)

IRB-RX-SH
Receiver sunshield
Installation



PhotoeyeVault

Black powder coated steel
bollard for photoeye
Learn more

IRB-SP
White nylon liquid tight strain relief connector
set of 2

IRB-S
White nylon mounting screws with nuts
set of 2

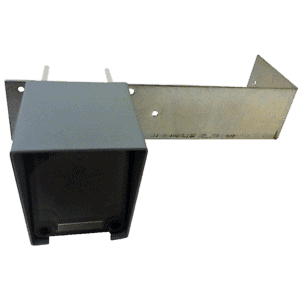

IRB-BR
Steel “L” shaped mounting bracket
3″ x 2″ x 9″
set of 2

Spec Sheet

Manual
