UL325 Infrared Photoeye Kit

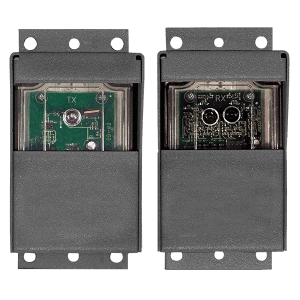

  • Kit includes transmitter, receiver, and protective hoods
  • Thru beam configuration
  • UL325-2018 compliant
  • 65 ft. operating range
  • NEMA 4X enclosure

IRB-325 Infrared Photoeye Overview

The IRB-325 is an external entrapment protection device, type B1, non-contact sensor for use with automatic gates and doors. This thru beam photoeye is powered by 12 VDC to 24 VAC and has an operating range up to 65 ft.

This photoeye is certified UL325-2018 compliant with operators that require NC monitoring.

The IRB-325’s powder coated steel hoods help protect against environmental exposure and accidental contact damage from vehicles and other equipment. A NEMA 4X enclosure provides the durability required for safety applications.

Features of Our IRB-325 Photoeyes

  • Operating range: 6 to 65 feet
  • Power: 12V to 24V DC or AC 150mA
  • Relay contacts: 30V 1A
  • Housing: UL and CSA Type 4, 4X, 3, 3R, 12 13 Rating
  • Dimensions: Height = 5.03”, Width = 3.06”, Depth = 3.02”
  • Operating temperature: -40F to +170F
Operating range 6 to 65 feet
Power supply 12 VDC to 24VAC/DC
Current consumption 12 VDC standby/detect, 24VAC/DC standby/detect
Receiver 33mA/25mA, 56mA/38mA
Transmitter 47mA
Relay contact rating 1A @ 30VDC
Operating temperature -40°F…+170°F
Housing material UL and CSA Type 4, NEMA 4X, 3, 3R, 12, 13
Housing dimensions 5.03” (128mm) x 3.06” (78mm) x 3.02” (77mm)
Hood dimensions 6.7” (170mm) x 3.3” (84mm) x 4.4” (112mm)

Gray powder coated steel protective hood
set of 2

White nylon liquid tight strain relief connector
set of 2

Black powder coated steel mounting post
2 in x 2 in x 2 ft

Spec Sheet
