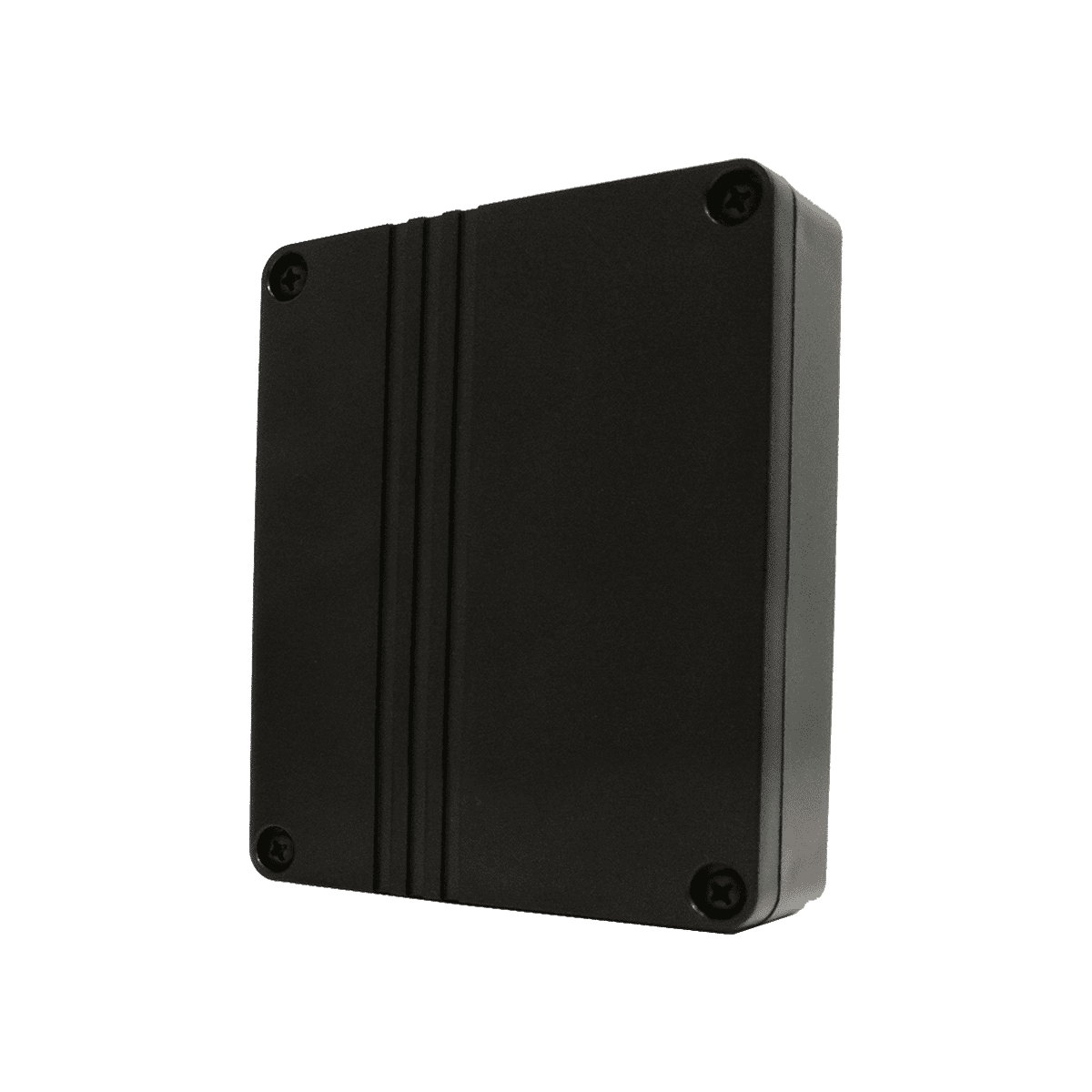

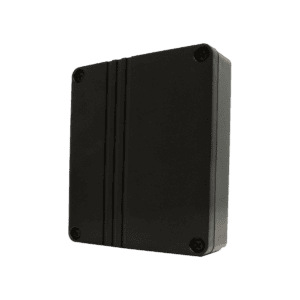

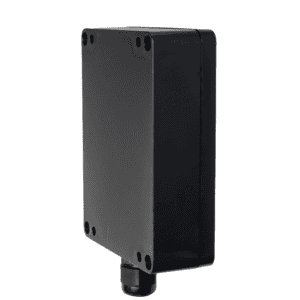

MID RANGE RFID READER
MID RANGE RFID READER - Image 2
MID RANGE RFID READER - Image 3
MID RANGE RFID READER - Image 4
MID RANGE RFID READER - Image 5
MID RANGE RFID READER - Image 6
MID RANGE RFID READER - Image 7
MID RANGE RFID READER - Image 8

MID RANGE RFID READER

Patriot MR Mini UHF Passive RFID Reader

  • Mini UHF Passive RFID Reader
  • Compact design
  • Easy installation with 9-conductor flying leads
  • User-configurable RF power (2-25 dBm), read interval, and Wiegand timing
  • Integrated LED indicator and audible buzzer for tag reads
  • Trigger input for controlled tag reading
  • 6-10 ft. operating range (dependent on tag and environment)
  • Wiegand (26-bit) and RS-232 outputs for seamless integration
  • Field-upgradable firmware via setup software
  • Effortless setup and configuration

PART NUMBERS:

  • PATRIOT-MR: PATRIOT-MR w/Universal Mounting Bracket
Request information

Vehicle Detectors

Safety

Access Controls

Patriot MR Mid-Range RFID Reader Overview

The Patriot MR from EMX Industries, Inc. is a mid-range RFID reader built for high performance in access control applications. It supports the 26-bit Wiegand format and features a circular polarized 4dBi gain antenna for reliable reading up to 10 feet. This reader is ideal for scenarios needing a shorter detection range than the Patriot E, with a compact housing (5.5” x 1.3” x 3.5”) that matches the WEL-200 for easy integration into existing systems.

Choose the Patriot MR for its reliable mid-range performance, adjustable read range, wide compatibility with UHF tags, and robust design suitable for various environments.



Features:

  • Medium-range RFID reader (10′)
  • Works with all EMX existing RFID tags (26-bit)
  • Wiegand and RS-232 outputs



Applications:

  • Carwash kiosks
  • Parking kiosks
  • Residential gates
  • Any setup needing short-range credential scanning in tight spaces



Mounting Solutions:

  • Basic mounting on a callbox, pay station or bollard to allow for credential scanning without rolling down a car window.
  • Universal mounting bracket included

This Patriot-MR kit includes:

PATRIOT-MR UNIT

STEEL MOUNTING BRACKET

Spec Sheet

Manual

Quick Start Guide

Setup Software

Comparison Table

Patriot – E Patriot – L Patriot – MR
TX / RX Frequency 902-928 MHz 902-928 MHz 902-928 MHz
Compatible Credentials UHF EPC Gen2 Tags including Windshield Tags, HangTags, Cards, Headlamps, etc.
(Optional Bluetooth Credentials)		 UHF EPC Gen2 Tags including Windshield Tags, HangTags, Cards, Headlamps, etc.
(Optional Bluetooth Credentials)		 UHF EPC Gen2 Tags including Windshield Tags, HangTags, Cards, Headlamps, etc.
Max RF Power 30dBm (1 Watt) 30dBm (1 Watt) 25 dBm (0.31 Watt)
Average Read Range (site and tag dependent) 18-25 feet 18-25 feet 6-10 feet
Antenna Circular Polarized 7.5 dBi (Gain) Linear 10dBi (Gain) Circular Polarized 4dBi (Gain)
LED Indicator Yes Yes Yes
Buzzer Indicator Yes Yes Yes
Supply Voltage 9-48VDC 9-48VDC 9-30VDC
Included Power Supply 110/240AC to 12VDC 110/240AC to 12VDC –
Included Mounting Bracket Yes Yes Yes
Max Current 1.82 A max @ 5VDC,
470mA 5VDC in standby (trigger mode)		 Average: 52mA @ 12V, 18mA @ 24V
Peak: 160mA @ 12V, 60mA @ 24V
Adjustable Read Range Yes Yes Yes
Wiegand Yes Yes Yes
RS-232 Yes Yes Yes
Relay Driver Output Yes Yes –
RS-485 / OSDP Yes Optional –
Communication Options for Reader Configuration RS-232,
Optional: RJ45 Ethernet Connector, WiFi		 RS-232,
Optional: RJ45 Ethernet Connector, WiFi		 RS-232
Extra Feature Ability to Store up to 500 Authorized Tag Numbers
(5 site codes and 100 tags per site) in reader for access control without a door controller.		 –
Tag Read Trigger Input Yes Yes Yes
FCC Approval Part 15 Part 15 Part 15
Operational Temperature -20°C to +70°C -20°C to +70°C -20°C to +70°C
Size 10.7” x 10.7” x 3.7” 9.45” x 9.45” x 3.82” 5.5” x 1.3” x 3.5”
