KPX-100

Programmable Keypad

  • Vandal resistant
  • Weatherproof
  • Large capacity
  • Cost effective

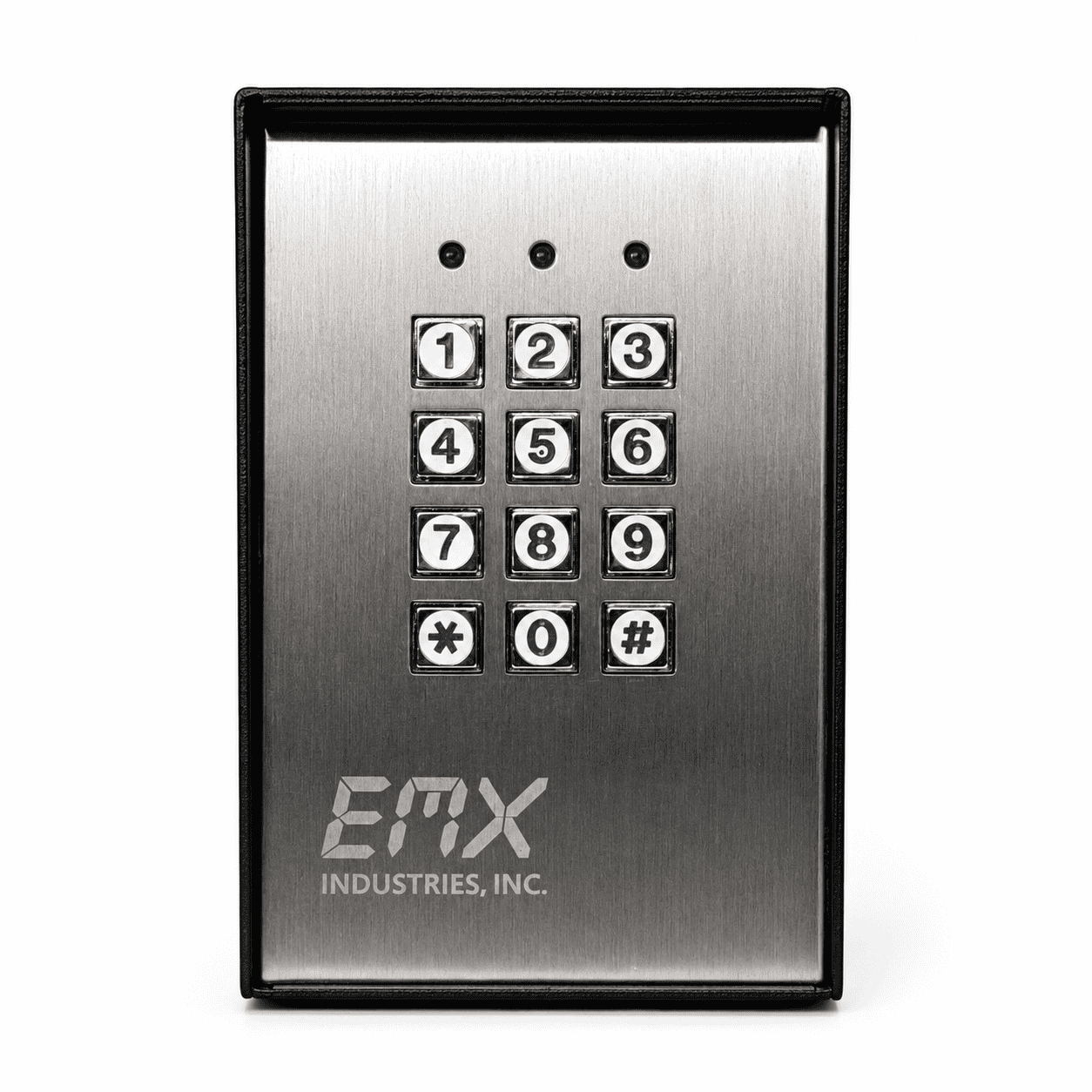

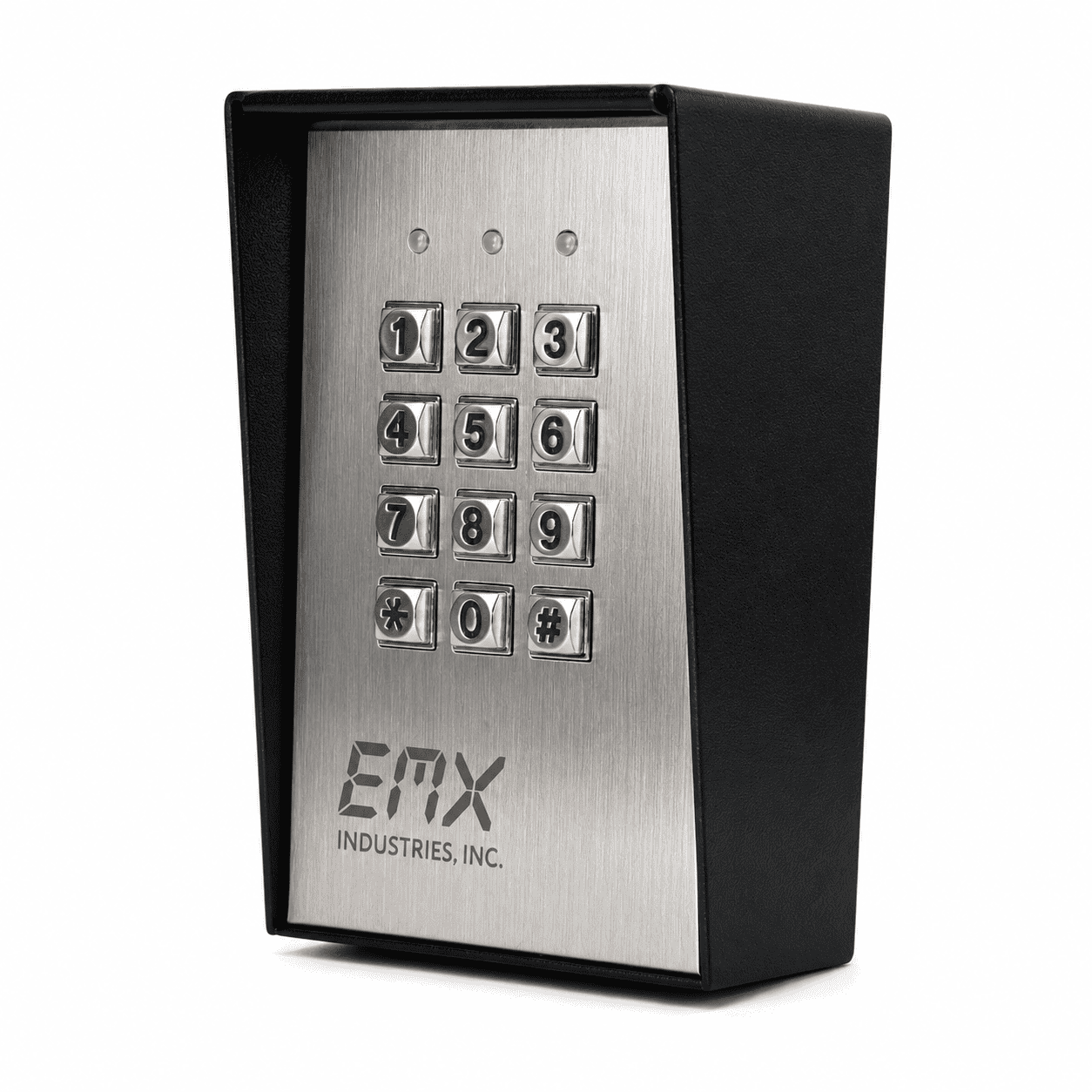

KPX-100 Programmable Keypad Overview

The KPX-100 is a dual relay output, programmable keypad. With its durable back-lit, all metal key buttons and a rugged metal housing, the KPX-100 programmable keypad is designed to handle high-traffic and harsh environments. The keypad fits on gooseneck mounts or on posts and walls. The KPX-100 has many features found in more expensive programmable keypads.



Features of the KPX-100 Programmable Keypad

  • Stainless steel face with metal backlit keys
  • Anodized and powder coated steel outer housing that is vandal and weather resistant to IP66
  • Dual relay outputs
  • Over 100 million 4-8 digit codes
  • 12-24 VAC/DC operation
  • 100 user codes on Relay 1; 10 users relay 2
  • Status indicator LEDs

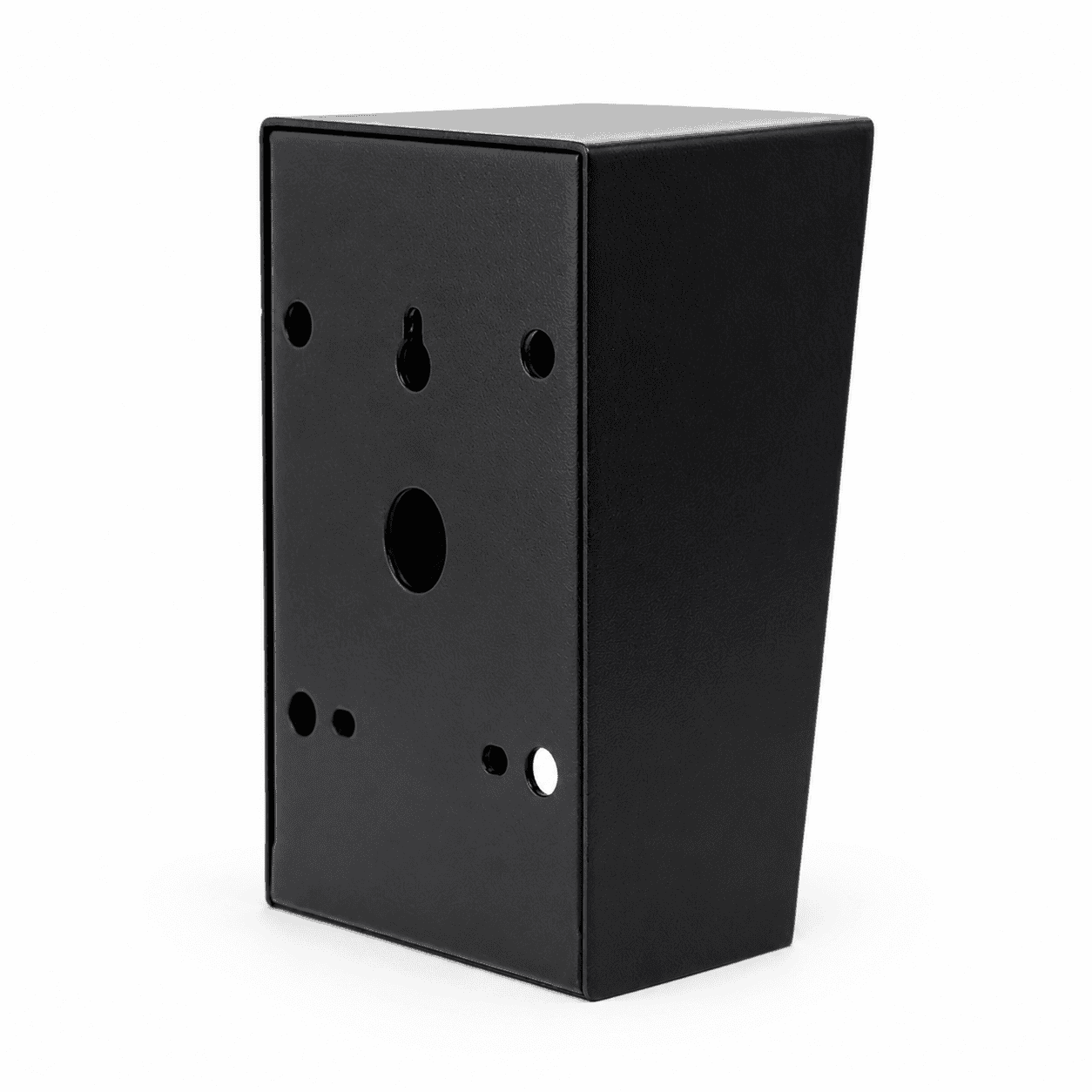

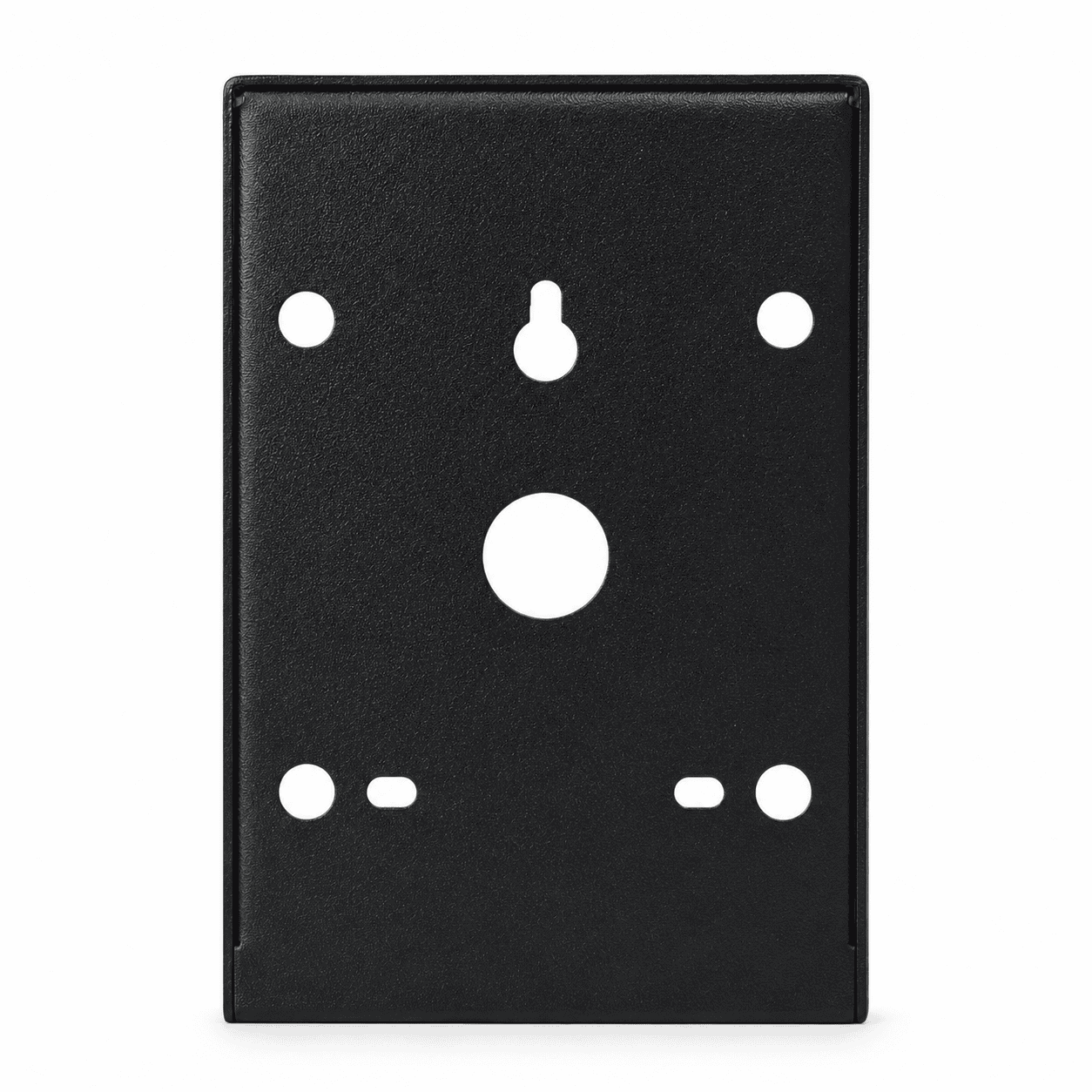

  • Universal mounting options for mounting on wall, post or gooseneck stand



KPX-100 Specs

Operational Voltage 12V – 24V AC/DC (No jumper selection required)
Current Consumption 15 mA standby to 100 mA two relays activated
Ambient Temperature -22°F – 159°F (30°C – 70°C)
Humidity 5-95% relative humidity non-condensing
Environmental IP66 all weather
Dimensions H=6.15in (156mm) x W=4.1in (103mm) x D=2.75in (70mm)
Housing Anodized steel with powder coat paint ABS (plastic)
Faceplate 1.5mm stainless steel
Key buttons cast metal back-lit
Weight 2.2 lbs. (980g) net
Relay Contacts Output 1 5A @ 30VDC max. Normally Open / Common / Normally Closed
Output 2 1A @ 30VDC max. Normally Open / Common / Normally Closed

Spec Sheet

Manual

Spanish Manual

Multi-User Setup

Single-User Setup
