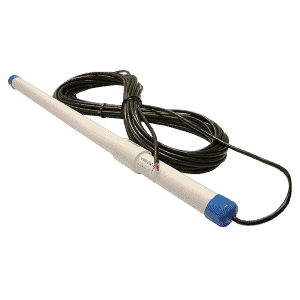

VMD-202

The most advanced single-piece vehicle free exit probe on the market today.

Compact Design for Discreet Detection

The VMD202 features a slim and small design that is buried next to a driveway.

High Quality Performance & Security

The VMD202 is watertight and direct burial compatible, making it perfect for outdoor use. Settings are stored in non-volatile memory, meaning they will remain even if power fails.

Power Inputs Covered

The VMD202 vehicle motion detector accepts a wide range of power inputs – 12-39 VDC or 12-27 VAC. The low standby current of 70 uA is great for solar power applications.

Low Current ConsumptioN

With a low current consumption of only 70uA standby and 25mA activated, the VMD202 will require minimal energy for operation.

Long lasting

Rugged construction means longevity and fewer service calls to replace components.

Made in the USA

Products are made in the USA, so any parts or service needs are handled faster.

Frequently Asked Questions

Do I need an LRS-C-1 for every FP or DB I have?

Yes, unless you have an LRS-L(logic interface) or you can utilize the NPN output available from the FP/DB.

If you have the LRS-L, you will still need one controller for initial programming of the sensor.

What does turning off an axis do?

Shapes the detection field to reduce sensitivity from objects in the direction of the OFF axis.

What happens if I turn all axis off?

They default to all ON if all three are set to off.

There are numbers on the LRS-C-1’s ULTRAMETER, what does this mean?

If there is no car parked near the sensor, this means the sensor sees a disturbance from ferrous metal local to the sensor or the sensor itself has moved since the calibration with controller.

What kind of sealant is best to use for mounting in ground?

A hard sealant that wont flex as pressure is applied to it. If the sealant can flex, it may allow slight sensor movement which will cause false detections/lockups.

The sealant also shouldn’t extend above the roadway. If it does, vehicle weight may be applied directly to the sensor and cause false detect/lockups.

Can the sensor be mounted above ground?

Yes, it is somewhat easier to mount the DB sensor using straps but either model (DB or FP) can be mounted above ground if they are secured in a way that ensures no movement.
