Introducing the new and improved:

IRB-RET2:

Retro-reflective Photoeye

EVERYTHING YOU LOVE about the original RET, PLUS MORE... now in a more compact, more user-friendly device.

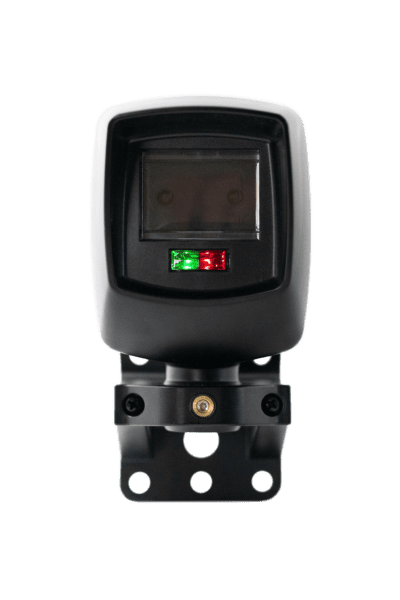

Easy alignment led

The IRB-RET2 boasts an Easy Alignment LED for hassle-free alignment.


What makes it easy:  When aligning, the RED LED will flash faster as alignment gets better.


A steady RED LED means perfect alignment has been reached.

Not powered
powered, Not aligned
Powered + Aligned

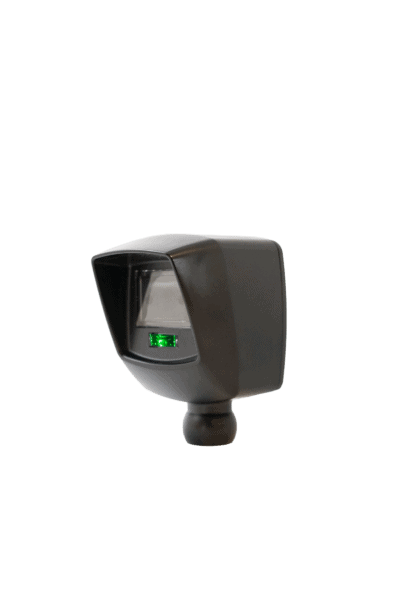

Integrated Sensor Hood

The IRB-RET2 features a built-in sensor hood, eliminating the need for extra components. This integrated design offers a streamlined, user-friendly experience for effortless setup and operation.

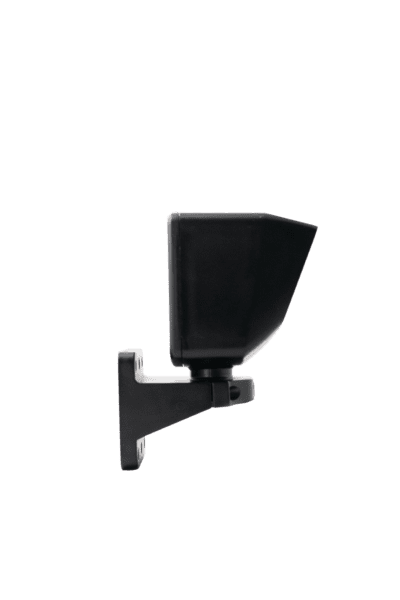

Ball and Socket Bracket

The IRB-RET2 utilizes a ball and socket bracket with a 1/2 inch threaded conduit connection, making mounting and alignment a breeze.

Ultimate...
alignment...
flexibility.

Optional STEALTH MODE (ALL LEDs OFF)

Experience the discreet IRB-RET2 with Stealth Mode, designed to keep your sensor concealed from curious eyes and potential vandals.



LEDs turn off after 30 seconds of unobstructed alignment, activating only when obstructed.



Maintain security without sacrificing functionality.

Stealth mode off
Stealth mode On

Monitoring Methods

The IRB-RET2 offers exceptional compatibility with all gate operators, thanks to its support for 6 UL325 monitoring methods and compatibility with non-monitored methods.



This versatile device seamlessly integrates with systems using:



  • Normally closed
  • 10k resistive termination
  • Two-wire pulsed (2 freq)
  • Two-wire pulsed (3 freq)
  • Four-wire pulsed (2 freq)
  • Four-wire pulsed (3 freq) configurations

The IRB-RET2 ensures ultimate adaptability for installers.



(oh, and don’t forget it works with non-monitored systems as well)

Operating Range

The IRB-RET2 stands out from its competitors with a remarkable operating range of 60 feet, nearly double the 32.5-foot range offered by other retroreflective photoeyes.



This extended range allows for enhanced flexibility in installation and positioning, providing superior performance and reliability in securing your property.

Frequently Asked Questions

Yes, the IRB-RET2 mounting bracket is compatible with the existing mounting platform of the IRB-RET.

The IRB-RET2 has an operating range of 5 ft (1.5 m) to 60 ft (18.3 m).

No, the reflector directs the beam back to the photoeye, so wiring to the other side of the roadway is not needed.

Stealth Mode is a feature that turns off the LEDs after 30 seconds when the sensor is aligned and unblocked but turns them on when obstructed. This mode helps hide the sensor from passers-by and vandals, especially at night, without affecting other functions.

The IRB-RET2 is a retroreflective, infrared photoeye type B1 noncontact sensor for use with automatic gates and doors.

Yes, the IRB-RET2 is compatible with most operators that accommodate monitored external entrapment devices per UL325.

The IRB-RET2 has detachable screw terminals for easier wiring. You can remove them while connecting wires, then plug them back in properly and secure them.
